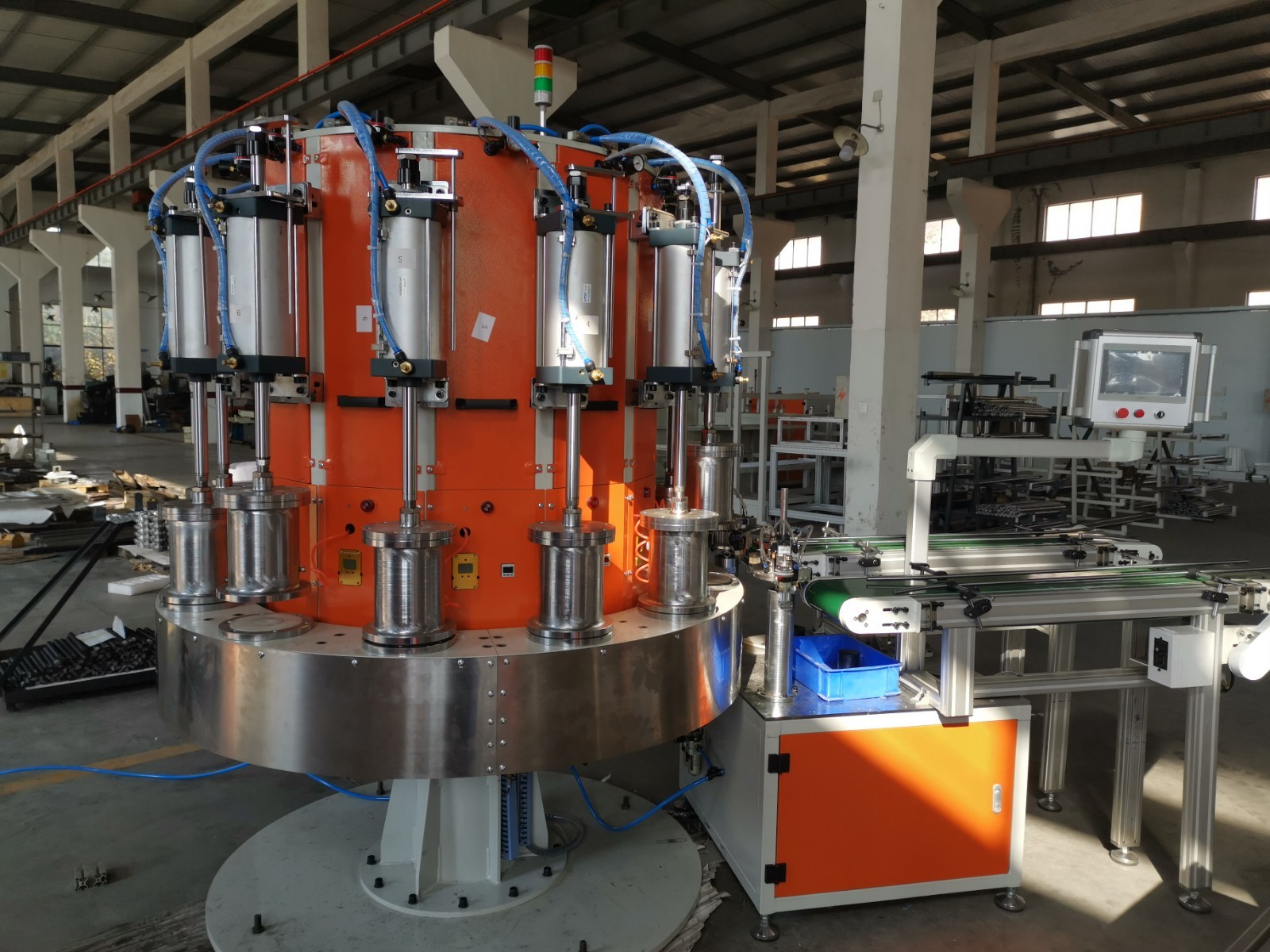

20 Stations Spin- On Oil Filter Dry Leakage Tester

Technical Parameter

1. Type: Auto Rotary Feeding, discharging, Dry leak Testing by air pressure sensing Usage

2. Leak Testing of oil filters Power Supply:220/380V 50/60Hz

3. 4 Phase Main Air Pressure:Over 6kgf/㎠

4. Air Pressure in testing:4- 5 kgf/㎠

5. Testing Capacity:40 pcs/min.

6. Available Filter Range Diameter :Ø60 - Ø105

7. Height 65mm - 180mm

8. Filter Clamping:Patented Downward Clamping

9. Leakage Detection One Cycle : 30 sec.

10. Detection Range :Over 0.5 cc / 10 sec.

11. Loading / Discharging Full Automatic

Features

1).Rigid clamping system : 3 years warranty program is employed

2).Patented clamping system : No need to change collets according to tap hole size (M18 ~ M26).

JiangSu MoEr Intelligent Equipment Co., Ltd was founded in 1990 is specialized in manufacturing the machines for primary / middle / high efficiency filters auto-oil/fuel/air filters, hydraulic pressure filter and water treatment filter. After yeas' development, it has been the most modern company among the competitors because of its high technical employees, high quality machines and perfect management. With yearly output of 880sets of filter making machines. And have developed over 70 kinds of the filter making machines and testing machines. The high technical leading machines like full-auto HEPA air filter mini pleating production line, separated air filter paper pleating production line, full-auto knife rotary paper pleating machine, full-auto spin-on filter assembling production line and so on. Which are greatly favored by customer’s home or abroad in the filter industry. And some of them have passed the CE certificate, for export to European countries, American, and the southeast asia countries etc.

Since the establishment, it has pursued the quality policy: innovative design and elaborate, one promise and full service, perseveringly who would furnish the customers with best products and service.
