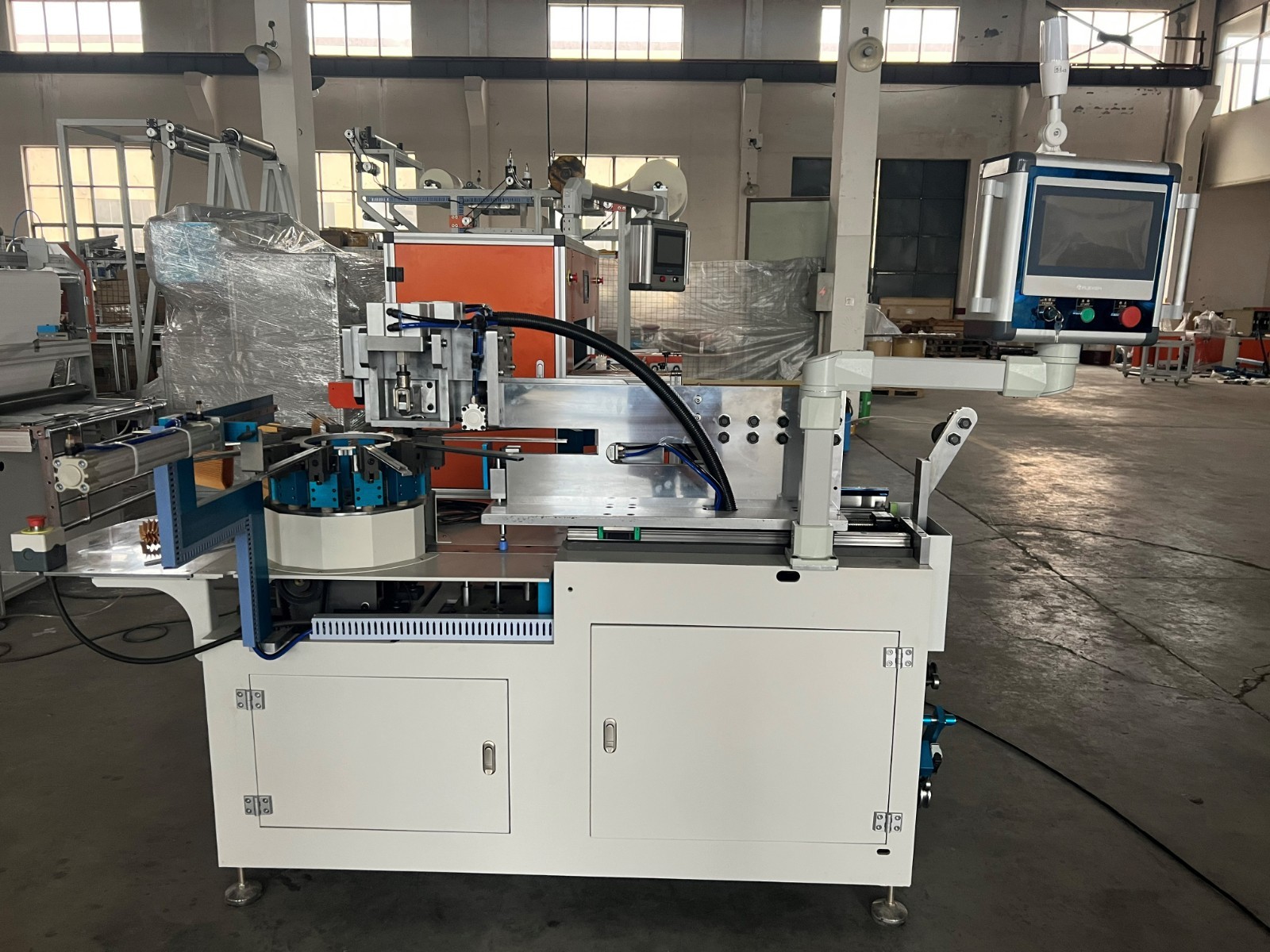

Full-auto Spin Oil Filter Steel Clipping Machinery

Technical Parameter

1. Product capability: 12~18pcs/min
2. Filter paper height: 30~250mm
3. Pleating height:10~38mm
4. Sizes of Steel strips: a) thickness 0.25~0.3mm b)width 12mm c)coiled material Ф inner Dia.＞150mm,Ф outer Dia.＜600mm
5. Motor power: 200W
6. Power supply:220V/50hz
7. Working sir pressure: 0.6Mpa
8. M/C weight: 500kg
9. M/C size: 2080*1000*1400mm(L*W*H)
Features

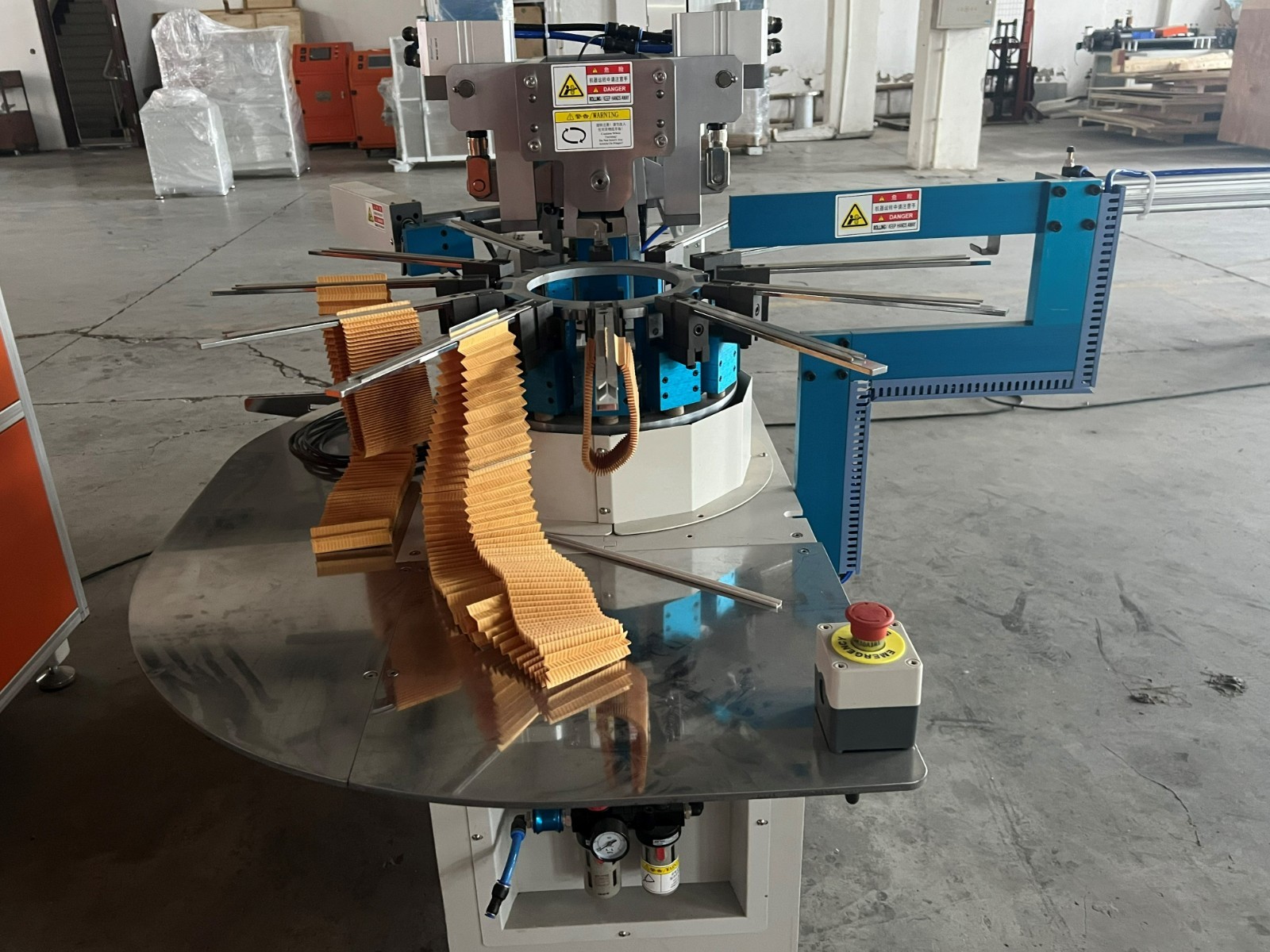

1. The whole working process of the steel strip forming-clipping-cutting-resuming is automatically finished by the PLC control pneumatic and machine.it is fast speed and high efficiency.
2. The steel strip clip the filter paper ends tightly to prevent the filter element from leakage.
3. The clipping height and width are easily to be adjusted and keep consistency as well.
4. The computer monitor control is used, which is easy operation.
5. The are 25 clip and convey stations, it is fast speed and high efficiency.
6. This machine has the cylinder un-loading device, it is high degree of the automatic.
Applications
This machine is professionally used for clipping the paper ends using the steel strip.

JiangSu MoEr Intelligent Equipment Co., Ltd was founded in 1990 is specialized in manufacturing the machines for primary / middle / high efficiency filters auto-oil/fuel/air filters, hydraulic pressure filter and water treatment filter. After yeas' development, it has been the most modern company among the competitors because of its high technical employees, high quality machines and perfect management. With yearly output of 880sets of filter making machines. And have developed over 70 kinds of the filter making machines and testing machines. The high technical leading machines like full-auto HEPA air filter mini pleating production line, separated air filter paper pleating production line, full-auto knife rotary paper pleating machine, full-auto spin-on filter assembling production line and so on. Which are greatly favored by customer’s home or abroad in the filter industry. And some of them have passed the CE certificate, for export to European countries, American, and the southeast asia countries etc.

Since the establishment, it has pursued the quality policy: innovative design and elaborate, one promise and full service, perseveringly who would furnish the customers with best products and service.
