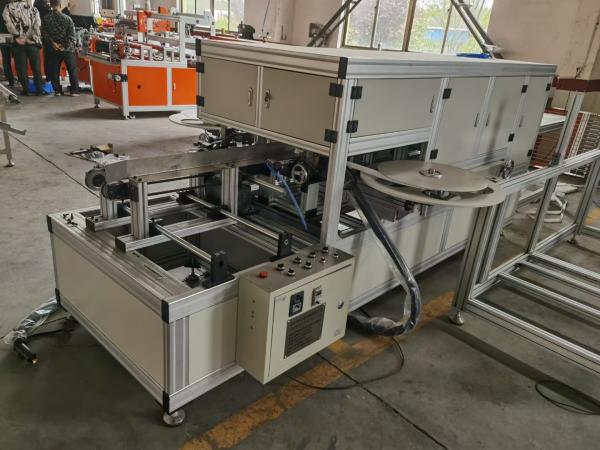

400mm Width Continuous Purifier Filter Strips Hotmelt Bonding
Machine
Technical Parameters:
Product height | 15-55mm |
Product width | 50-400mm |
Output of the machine | 8kw |
Working air pressure | 0.6Mpa |
Power supply | 380v/50Hz |
Hotmelt Tank | 20L |
M/C weight | 700kg |
M/C Size | 2500mm*1000mm*1150mm |
Applications:
1. This Continuous Purifier Filter Strips Hotmelt Bonding Machine is
used in edge banding process for the rectangular filter element.
Use continuous feeding edge band and continuous spray of het melt
to achieve automatic edge banding. and the operator can complete the edge banding. The outlet is equipped with
automatic detecting and cutting between filters. It has the
characteristic of easy operation, high precision and stable high
productivity.
2. Process description:
Place the filter into mould and push into the edge banding machine
> automatic edge banding and cooling and high resolution,
printing>automatically cutting> take out the filter
3. Hotmelt Applicators 20 L, with adjustable gun x 2pcs, hose 2pcs.
The edge band of the main line can be adjustable by two
synchronized screw system, use grating scale to measure the width
of edge banding system and display on the digital gauge.
4. The main line is driven by multiple ball spline shafts, stable
and reliable transmission, and adjustable width of on the line.
5. The air cooling device is arranged above the conveyor line of
the filter element.
6. The edge band paste position can be fine adjusted up and down.
7. Glue gun open and close automatically with the line status,
precision and fluctuation of glue with less than 0.5mm.
8. Equipped with circular knife on-line rough cutting function,
automatically cut off the ege band in the middle of the interval
between two filter elements.
